High Performance Universal Crane Hydraulic Oil Cooler
You are here: Home » Products » Heat Exchanger » Oil Cooler » High Performance Universal Crane Hydraulic Oil Cooler

PRODUCTS DETAILS

loading

Share to:

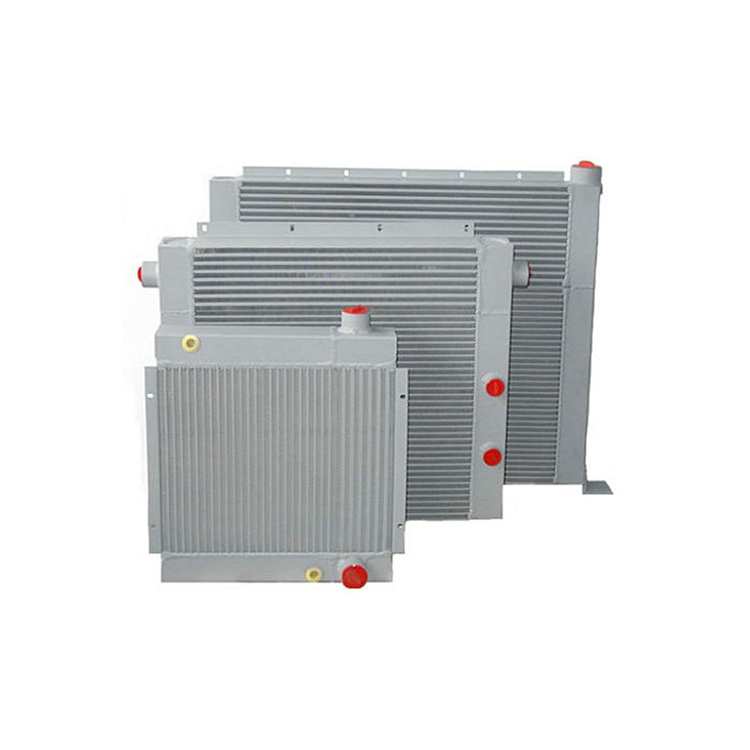

High Performance Universal Crane Hydraulic Oil Cooler

We have been providing thermal solutions over 10 years for almost every industrial application field. Our products have been sold and exported to over 100 regions and countries globally.

Mstirling's oil coolers cover auto engine oil cooler, auto transmission oil cooler, hydraulic oil cooler and other oil coolers for construction equipment, wind turbine gear box, agricultural and forestry machinery.

100% customized as your requirements. Support OEM/ODM. 100% meets the standards of GB, SGS, CE.
Availability:


NO.
ITEM
CONTENT DESCRIPTION
1
Material
Aluminum alloy, AA3003 is commonly used
2
Outer Dimension Limit
Outer Dimension Limit
3
Production Technique
Vacuum brazing and arc welding
4
Outer Dimension Limit
Max. 4000*4000*1000mm L*W*H
5
Working Pressure
Max 2Mpa
6
Thermal capacity
50 Kw
7
Gas flow rate
1 kg/s
8
Inlet temperature
100 ℃
9
Outlet temperature
50 ℃
10
Cold air inlet / outlet temperature
50 ℃ / 61 ℃
11
Cold air flow rate
4.5 kg/s


A High-Performance Universal Oil Cooler is a type of oil cooler that is designed to provide superior cooling performance for a wide range of applications. It is called "universal" because it is a versatile oil cooler that can be used in a variety of different machines and vehicles, including cars, trucks, motorcycles, and industrial equipment.


The High-Performance Universal Oil Cooler is typically made from high-grade materials, such as aluminum or stainless steel, which offer excellent durability and resistance to corrosion. It is also designed with advanced cooling technology, including high-performance fans and heat exchange tubes, which work together to efficiently dissipate heat from the oil.

High-Performance Universal Oil Cooler

Connect with us to know more sizes or models for oil coolers

Mstirling's oil cooler technologies include

◆ Vacuum brazed aluminum intercooler with aluminum die casting tanks welded

◆ Controlled atmosphere brazed aluminum intercooler with aluminum die casting tanks welded

◆ Vacuum or CAB brazed aluminum intercooler with aluminum sheet metal fabricated tanks welded

◆ Vacuum or CAB brazed aluminum intercooler with aluminum extruded tanks welded

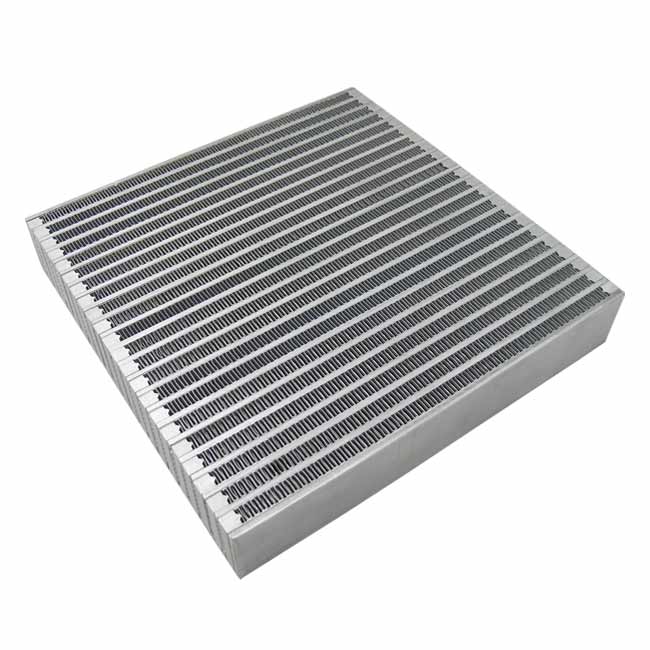

High-Performance Oil CoolerUniversal Oil Cooler


An oil cooler is a radiator-like component specifically designed to keep your oil cool. It consists of tubes and fins that allow for good airflow to pass through. Usually, they are placed where they can receive maximum airflow such as in front of or behind the radiator or fans.


Oil is without doubt one of the most important fluid contained within a vehicle, because it lubricates the moving parts of the engine and absorbs a lot of heat. Oil coolers are used to cool oil and hydraulic fluids for engines and automatic gear boxes. The oil cooler receives the lubricant’s heat and is cooled down by the ambient air or the radiator coolant. In some vehicle models, the oil cooler is built into the radiator water tank. In modern vehicles, an automatic gearbox oil cooler is often designed as a stand-alone unit, mounted separately in the engine compartment or on the engine block.


Mstirling's manufacture a wide range of oil coolers include

● Auto engine oil cooler

● Auto transmission oil cooler

● Hydraulic oil cooler for construction equipment

● Oil cooler for agricultural and forestry machinery

● Gearbox oil cooler for wind power generator

● Oil cooler for bitcoin digger miner machine

● Other custom oil coolers

Design & Engineering
design of High-Performance Universal Oil Cooler
How to design one good plate-fin heat exchanger?
☛Mstirling designers,engineering engineers work closely with production engineers,quality engineers and source engineers to ensure our solutions meet DFM and are optmized;
☛Simulation softwares are fluently used by Metalli's engineers to analyze and improve your products' structure and design.
