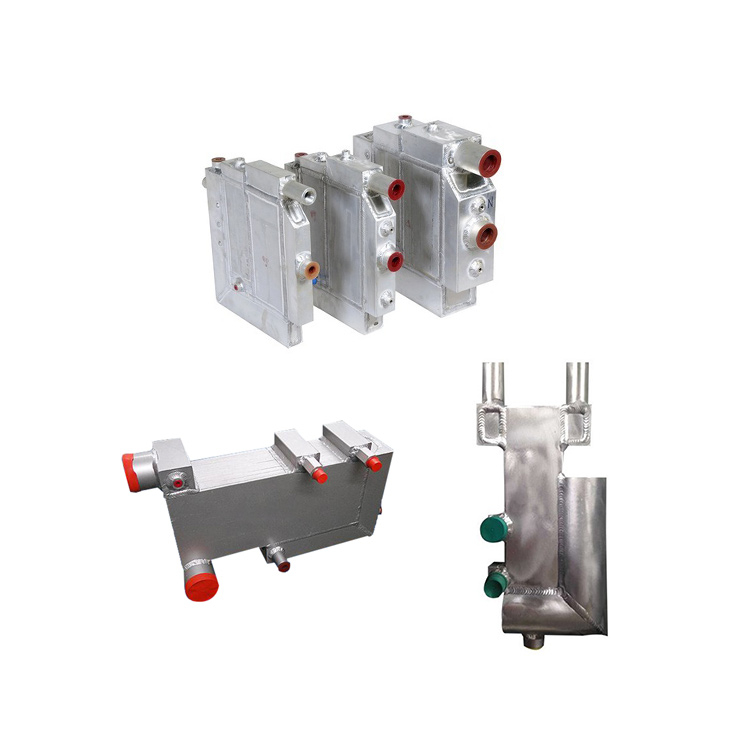

OEM Refrigerated Compressed Air Dryer Evaporator

We have been focusing on thermal management field over 10 years. Our capabilities cover a wide range that provide you one-stop solution quicker and easier.

Mstirling has been focusing on design and manufacturing condenser and evaporator for auto air conditioner, and pre-cooled evaporator for refrigerated air dryers.

100% customized as your requirements. Support OEM/ODM. 100% meets the standards of GB, SGS, CE.
Availability:

Product name : OEM refrigerated compressed air dryer pre-cooled evaporator heat exchanger


                                      PRODUCT DESCRIPTION

NO.

ITEM

DESCRIPTION

1

Material

Aluminum alloy 3003

2

Outer Dimension (L*W*H)

Up to 1200*600*120 mm

3

Working Pressure for air

1.3 Mpa

4

Working Pressure for coolant R22

2.0 Mpa

5

Capacity for Air/Gas

5/10/15/20/40 L

6

Capacity for R22

1/1.5/2/3/4 L

7

Medium

Refrigerant and Gas

8

Manufacturing Method

Controlled atmosphere brazing

9

Cooling Method

Air to coolant

10

Surface Finish

Natural or powder coating or zinc coating

11

Warranty time

1 year

12

Place of Region

Jiangsu province of China

13

Reference Standard

GB/T 3190-2008,NB/T47006-2019


M-stirling’s condenser or evaporator technologies include

Vacuum brazed or controlled atmosphere brazed aluminum parallel flow condenser or evaporator with flat microchannel tube and fins

◆ Controlled atmosphere brazed serpentine condenser with microchannel tube and finsAuto air conditioning condenser


▲ Auto air conditioning condenser




Air dryer heat exchanger evaporator


▲ Air dryer heat exchanger evaporator



About Air dryer


What is the principle of air dryer?

The refrigerated air dryer working principle is based on de-humidifying air by rapidly cooling it, condensing it, and draining off the moisture. The operation is like that of a domestic refrigerator or home air-conditioning system.

How does a refrigeration air dryer work?

Refrigerated air dryers operate with a similar principle to domestic refrigerators or home air conditioning systems. The compressed air is cooled in an air-to-refrigerant heat exchanger to about 35°F, a temperature where the moisture condenses and is drained off.


What is the function of air dryer in humidity?

The basic function of the air dryer is to remove moisture from the air by cooling it with a refrigerant. Thus, the water vapor is condensed, and the air can be compressed. The result is dry compressed air, which can be used in compressed air equipment without causing any damage.


Which gas is used in air dryer?

The compressors used in this type of dryer are usually of the hermetic type and the most common gas used is R-134a and R-410a for smaller air dryers up to 100 cfm.


What causes an air dryer to freeze?

Air Dryers in Cold Weather
In cold ambient conditions, refrigerated air dryers may operate too efficiently. As moisture is separated out by the dryer, it can be cooled to a point where it will freeze within the heat exchanger, causing blockages or damage.


M-stirling’s main condenser and evaporator

●    Auto air conditioning condenser

●    Auto air conditioning evaporator

●    Other custom parallel flow aluminum condenser and evaporator
